Objective
Configure Multi-Area OSPF. R1 in Area 1, R2 and R3 in Area 0 (Backbone), and R4 in Area 2.

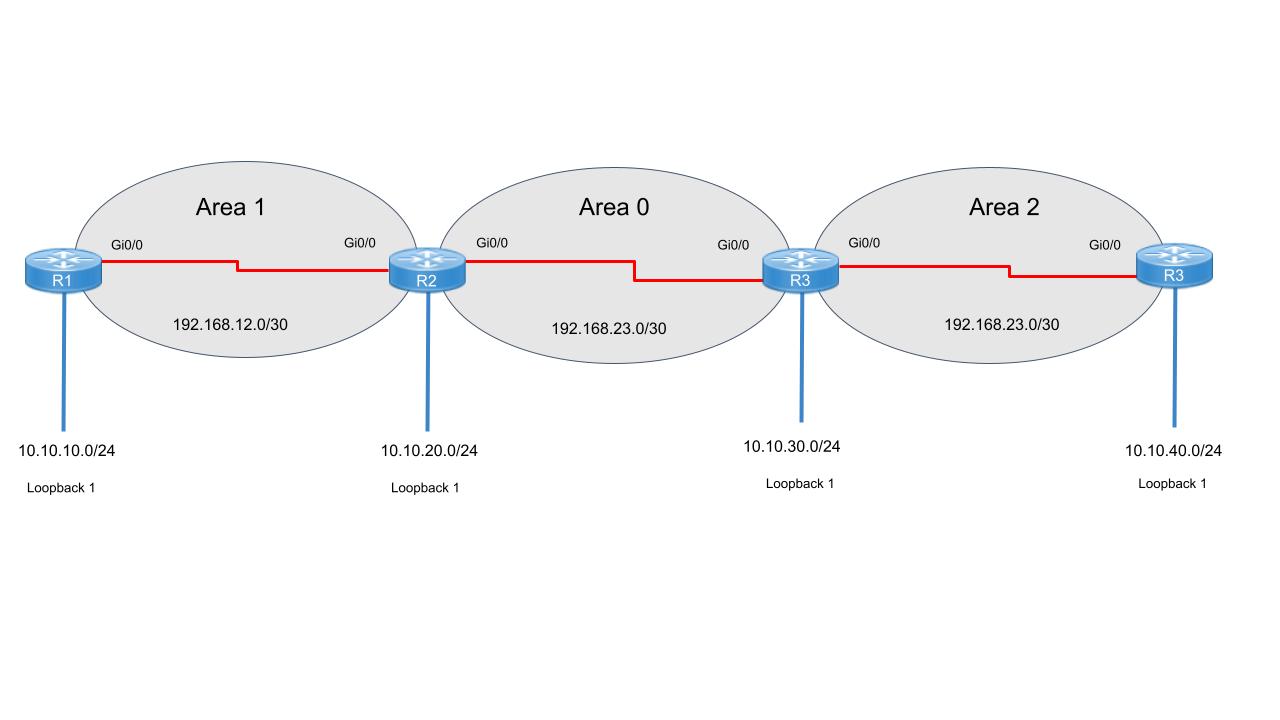

Lab Topology
Task 1 - Configure R1 (Internal Area 1)
R1(config)# hostname R1 R1(config)# interface GigabitEthernet0/0 R1(config-if)# ip address 10.1.2.1 255.255.255.0 R1(config-if)# no shutdown R1(config)# router ospf 1 R1(config-router)# router-id 1.1.1.1 R1(config-router)# network 10.1.1.0 0.0.0.255 area 1 R1(config-router)# network 10.1.2.0 0.0.0.255 area 1
Task 2 - Configure R2 (ABR: Area 1 & 0)
R2(config)# hostname R2 R2(config)# interface Gi0/0 ! To R1 R2(config-if)# ip address 10.1.2.2 255.255.255.0 R2(config-if)# no shutdown R2(config)# interface Gi0/1 ! To R3 R2(config-if)# ip address 10.2.3.2 255.255.255.0 R2(config-if)# no shutdown R2(config)# router ospf 1 R2(config-router)# router-id 2.2.2.2 R2(config-router)# network 10.1.2.0 0.0.0.255 area 1 R2(config-router)# network 10.2.3.0 0.0.0.255 area 0
Task 3 - Configure R3 (ABR: Area 0 & 2)
R3(config)# hostname R3 R3(config)# interface Gi0/0 ! To R2 R3(config-if)# ip address 10.2.3.3 255.255.255.0 R3(config-if)# no shutdown R3(config)# interface Gi0/1 ! To R4 R3(config-if)# ip address 10.3.4.3 255.255.255.0 R3(config-if)# no shutdown R3(config)# router ospf 1 R3(config-router)# router-id 3.3.3.3 R3(config-router)# network 10.2.3.0 0.0.0.255 area 0 R3(config-router)# network 10.3.4.0 0.0.0.255 area 2
Task 4 - Configure R4 (Internal Area 2)
R4(config)# hostname R4 R4(config)# interface Gi0/0 R4(config-if)# ip address 10.3.4.4 255.255.255.0 R4(config-if)# no shutdown R4(config)# router ospf 1 R4(config-router)# router-id 4.4.4.4 R4(config-router)# network 10.3.4.0 0.0.0.255 area 2
Task 5 - Verification
Ensure adjacencies are formed and inter-area routes are present in the routing table.
R1# show ip ospf neighbor R1# show ip route ospf O IA 10.2.3.0 [110/2] via 10.1.2.2, GigabitEthernet0/0 O IA 10.3.4.0 [110/3] via 10.1.2.2, GigabitEthernet0/0 R1# show ip ospf interface brief
