Objective
Configure a Router and Switch to allow communication between VLAN 10 and VLAN 20 using sub-interfaces.

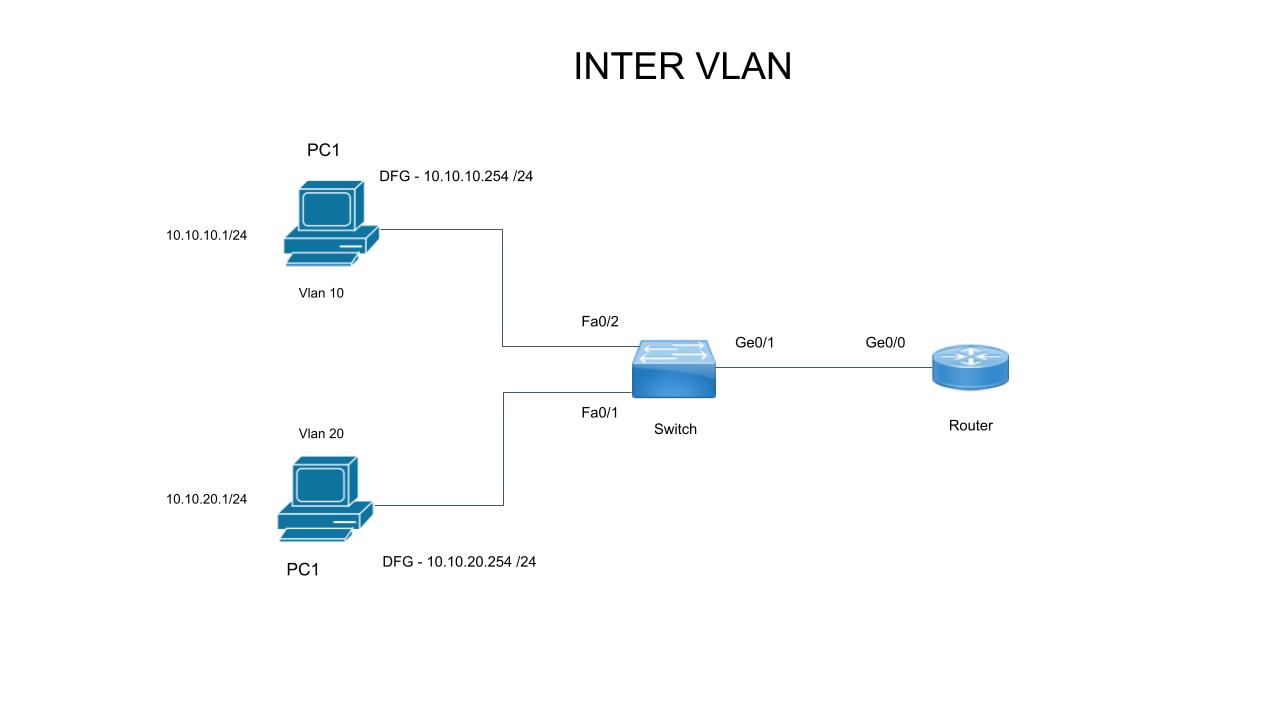

Lab Topology
Task 1 - Switch Configuration (Basics & Trunking)
SW1(config)# hostname SW1 SW1(config)# vlan 10 SW1(config)# vlan 20 SW1(config)# interface gigabitEthernet 0/1 SW1(config-if)# switchport mode trunk SW1(config-if)# no shutdown
Task 2 - Router Sub-interfaces (ROAS)
R1(config)# hostname R1 R1(config)# interface gigabitEthernet 0/0 R1(config-if)# no shutdown R1(config-if)# exit R1(config)# interface gigabitEthernet 0/0.10 R1(config-subif)# encapsulation dot1q 10 R1(config-subif)# ip address 192.168.10.1 255.255.255.0 R1(config)# interface gigabitEthernet 0/0.20 R1(config-subif)# encapsulation dot1q 20 R1(config-subif)# ip address 192.168.20.1 255.255.255.0
Task 3 - Verification
Verify the routing table contains both subnets.
R1# show ip interface brief R1# show ip route connected C 192.168.10.0/24 is directly connected, GigabitEthernet0/0.10 C 192.168.20.0/24 is directly connected, GigabitEthernet0/0.20 SW1# show interfaces trunk
